sh::NetworkApi Class Reference

Class responsible for listening for HTTP requests and for handlling them using the core. More...

#include <network-api.h>

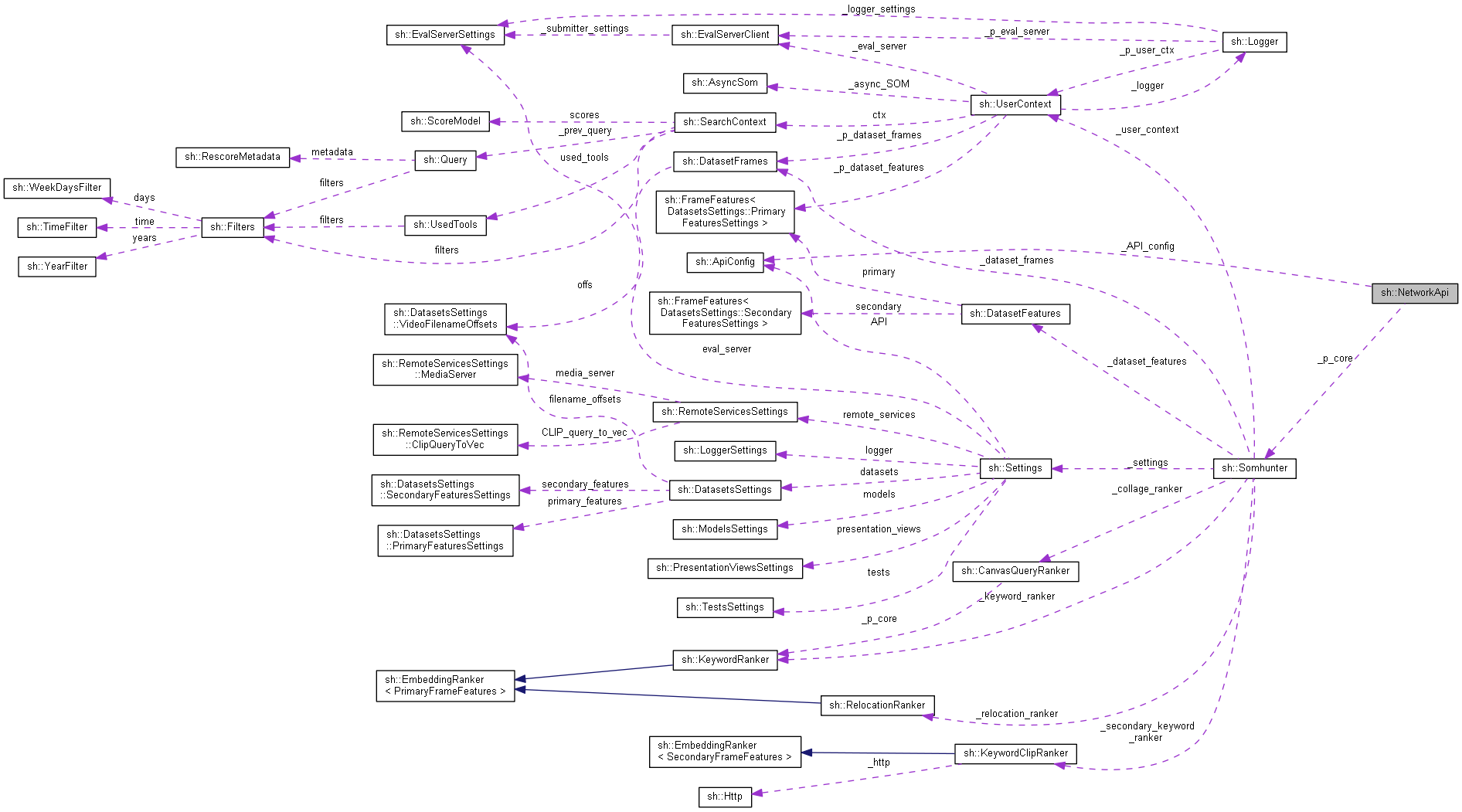

Collaboration diagram for sh::NetworkApi:

Public Member Functions
	NetworkApi ()=delete
	Only single ctor overload is acceptable. More...
	NetworkApi (const ApiConfig &API, Somhunter *p_core)
	Constructs the HTTP API instance for the given core and with the given API config. More...
void	initialize ()
	Initializes the HTTP listeners on the required endpoints. More...
void	run ()
	The "main" function of the HTTP API - calls both initialize & terminate. More...
void	terminate ()
	Safely terminates all the endpoint listeners. More...

Private Member Functions
void	handle__api__GET (http_request req)
void	handle__api__config__GET (http_request req)
void	handle__config__GET (http_request req)
void	handle__user__context__GET (http_request req)
void	handle__dataset__video_detail__GET (http_request req)
void	handle__search__get_top_display__POST (http_request req)
void	handle__search__get_som_display__POST (http_request req)
void	handle__search__get_som_relocation_display__POST (http_request req)
void	handle__search__keyword_autocomplete__GET (http_request req)
void	handle__search__reset__POST (http_request req)
void	handle__search__rescore__POST (http_request req)
void	handle__search__like_frame__POST (http_request req)
void	handle__search__bookmark_frame__POST (http_request req)
void	handle__search__context__POST (http_request req)
void	handle__search__context__GET (http_request req)
void	handle__log__scroll__GET (http_request req)
void	handle__log__text_query_change__GET (http_request req)
void	handle__log__canvas_query_change__GET (http_request req)
void	handle__eval_server__submit__POST (http_request req)
void	handle__eval_server__login__POST (http_request req)
void	handle__eval_server__logout__POST (http_request req)
void	push_endpoint (const std::string &path, std::function< void(NetworkApi *, http_request)> GET_handler=std::function< void(NetworkApi *, http_request)>{}, std::function< void(NetworkApi *, http_request)> POST_handler=std::function< void(NetworkApi *, http_request)>{}, std::function< void(NetworkApi *, http_request)> PUT_handler=std::function< void(NetworkApi *, http_request)>{}, std::function< void(NetworkApi *, http_request)> DEL_handler=std::function< void(NetworkApi *, http_request)>{})
	Registers the provided handlers for the given path in the HTTP listener. More...
RescoreMetadata	extract_rescore_metadata (web::json::value &body)
	Extracts RescoreMetadata from the body variable. More...
std::vector< TextualQuery >	extract_textual_query (web::json::value &body)
	Extracts a vector of TextualQuery from the body variable. More...
std::vector< RelocationQuery >	extract_relocation_query (web::json::value &body)
	Extracts a vector of RelocationQuery from the body variable. More...
std::vector< CanvasQuery >	extract_canvas_query (web::json::value &body)
	Extracts a vector of CanvasQuery from the body variable. More...
Filters	extract_filters (web::json::value &body)
	Extracts Filters from the body variable. More...
std::lock_guard< std::mutex >	exclusive_lock () const

Static Private Member Functions
static void	add_CORS_headers (http_response &res)
	Adds the CORS headers to the given HTTP response instance. More...

Private Attributes
ApiConfig	_API_config
	A private copy of config. More...
Somhunter *	_p_core
	A pointer to the core that this API exposes. More...
std::string	_base_addr
	Base HTTP API address. More...
std::vector< http_listener >	_endpoints
	Vector of used endpoints. More...
std::mutex	_req_mtx
	Lock used to synchronize some requests. More...

Detailed Description

Class responsible for listening for HTTP requests and for handlling them using the core.

This is the universal API to the SOMHunter Core if you're not able to call the native C++ API of class Somhunter directly.

See also

class Somhunter

Remarks

If you're on Windows and you want to listen for requests from public network, you need to have Administrator privilages, otherwise the listener initialization will fail.

Constructor & Destructor Documentation

NetworkApi() [1/2]

sh::NetworkApi::NetworkApi ( )

delete

Only single ctor overload is acceptable.

NetworkApi() [2/2]

NetworkApi::NetworkApi	(	const ApiConfig &	API,
		Somhunter *	p_core
	)

Constructs the HTTP API instance for the given core and with the given API config.

Member Function Documentation

add_CORS_headers()

void NetworkApi::add_CORS_headers ( http_response &  res )

staticprivate

Adds the CORS headers to the given HTTP response instance.

exclusive_lock()

std::lock_guard<std::mutex> sh::NetworkApi::exclusive_lock ( ) const

inlineprivate

extract_canvas_query()

std::vector< CanvasQuery > NetworkApi::extract_canvas_query ( web::json::value &  body )

private

Extracts a vector of CanvasQuery from the body variable.

Parameters

body	JSON structure to be parsed.

Returns

New instance of parsed vector of CanvasQuery structure.

extract_filters()

Filters NetworkApi::extract_filters ( web::json::value &  body )

private

Extracts Filters from the body variable.

Parameters

body	JSON structure to be parsed.

Returns

New instance of parsed Filters structure.

extract_relocation_query()

std::vector< RelocationQuery > NetworkApi::extract_relocation_query ( web::json::value &  body )

private

Extracts a vector of RelocationQuery from the body variable.

Parameters

body	JSON structure to be parsed.

Returns

New instance of parsed vector of RelocationQuery structure.

extract_rescore_metadata()

RescoreMetadata NetworkApi::extract_rescore_metadata ( web::json::value &  body )

private

Extracts RescoreMetadata from the body variable.

Parameters

body	JSON structure to be parsed.

Returns

New instance of parsed RescoreMetadata structure.

Here is the call graph for this function:

extract_textual_query()

std::vector< TextualQuery > NetworkApi::extract_textual_query ( web::json::value &  body )

private

Extracts a vector of TextualQuery from the body variable.

Parameters

body	JSON structure to be parsed.

Returns

New instance of parsed vector of TextualQuery structure.

handle__api__config__GET()

void NetworkApi::handle__api__config__GET ( http_request  req )

private

Here is the call graph for this function:

handle__api__GET()

void NetworkApi::handle__api__GET ( http_request  req )

private

Here is the call graph for this function:

handle__config__GET()

void NetworkApi::handle__config__GET ( http_request  req )

private

Here is the call graph for this function:

handle__dataset__video_detail__GET()

void NetworkApi::handle__dataset__video_detail__GET ( http_request  req )

private

Here is the call graph for this function:

handle__eval_server__login__POST()

void NetworkApi::handle__eval_server__login__POST ( http_request  req )

private

Here is the call graph for this function:

handle__eval_server__logout__POST()

void NetworkApi::handle__eval_server__logout__POST ( http_request  req )

private

Here is the call graph for this function:

handle__eval_server__submit__POST()

void NetworkApi::handle__eval_server__submit__POST ( http_request  req )

private

handle__log__canvas_query_change__GET()

void NetworkApi::handle__log__canvas_query_change__GET ( http_request  req )

private

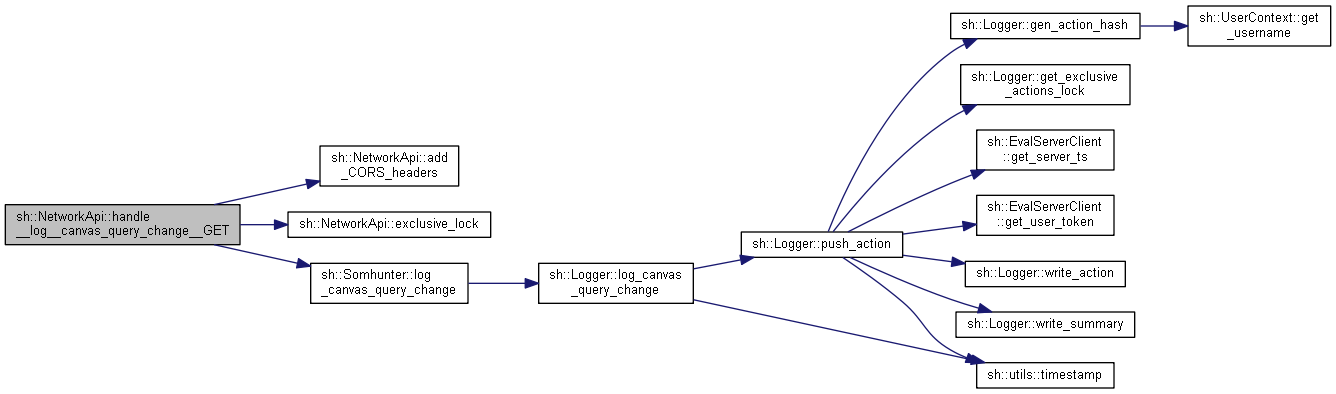

Here is the call graph for this function:

handle__log__scroll__GET()

void NetworkApi::handle__log__scroll__GET ( http_request  req )

private

Here is the call graph for this function:

handle__log__text_query_change__GET()

void NetworkApi::handle__log__text_query_change__GET ( http_request  req )

private

Here is the call graph for this function:

handle__search__bookmark_frame__POST()

void NetworkApi::handle__search__bookmark_frame__POST ( http_request  req )

private

Here is the call graph for this function:

handle__search__context__GET()

void NetworkApi::handle__search__context__GET ( http_request  req )

private

Here is the call graph for this function:

handle__search__context__POST()

void NetworkApi::handle__search__context__POST ( http_request  req )

private

Here is the call graph for this function:

handle__search__get_som_display__POST()

void NetworkApi::handle__search__get_som_display__POST ( http_request  req )

private

Here is the call graph for this function:

handle__search__get_som_relocation_display__POST()

void NetworkApi::handle__search__get_som_relocation_display__POST ( http_request  req )

private

Here is the call graph for this function:

handle__search__get_top_display__POST()

void NetworkApi::handle__search__get_top_display__POST ( http_request  req )

private

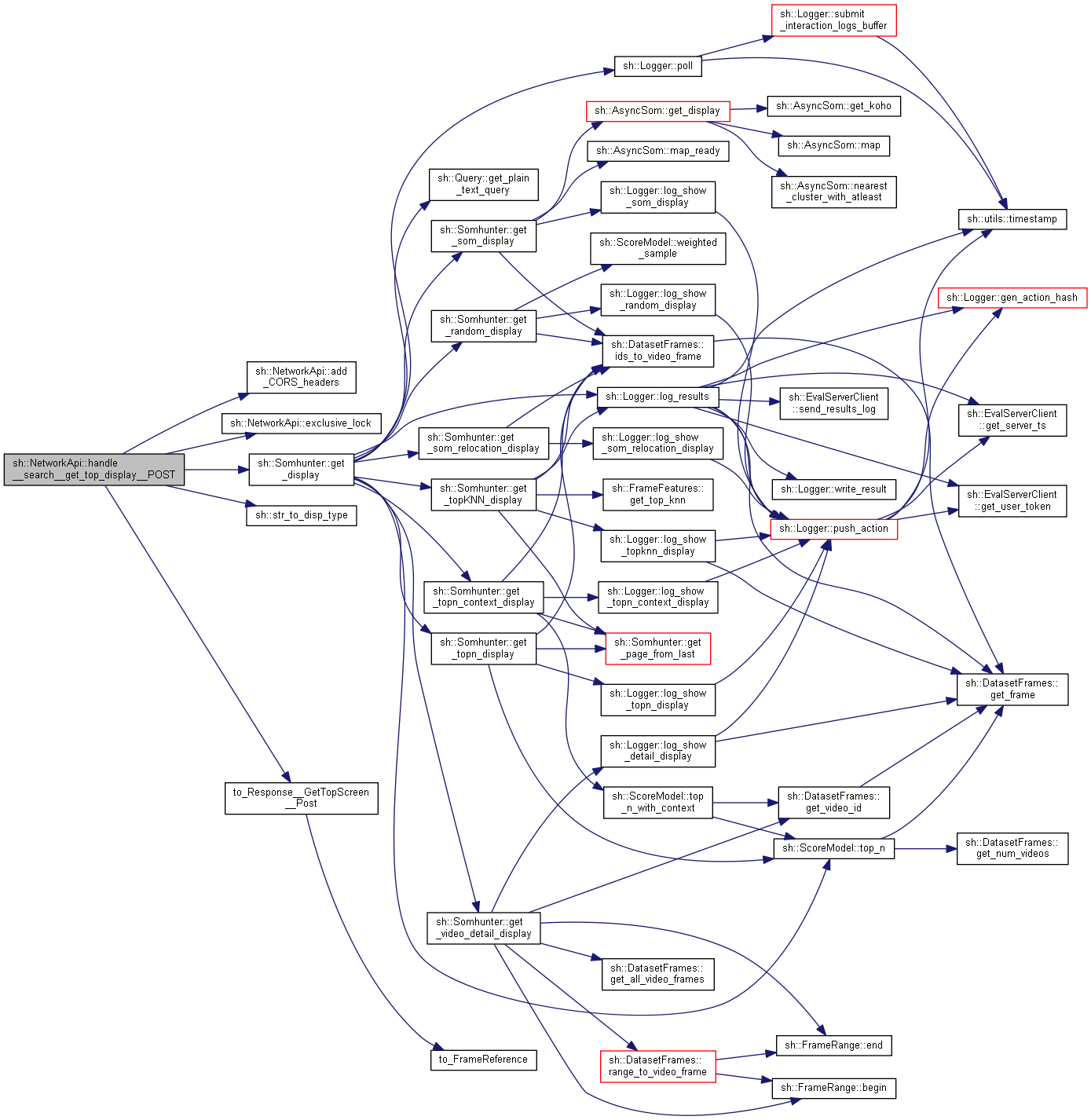

Here is the call graph for this function:

handle__search__keyword_autocomplete__GET()

void NetworkApi::handle__search__keyword_autocomplete__GET ( http_request  req )

private

Here is the call graph for this function:

handle__search__like_frame__POST()

void NetworkApi::handle__search__like_frame__POST ( http_request  req )

private

Here is the call graph for this function:

handle__search__rescore__POST()

void NetworkApi::handle__search__rescore__POST ( http_request  req )

private

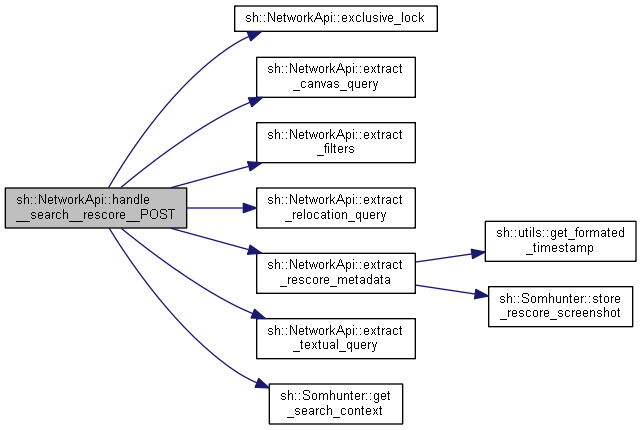

Here is the call graph for this function:

handle__search__reset__POST()

void NetworkApi::handle__search__reset__POST ( http_request  req )

private

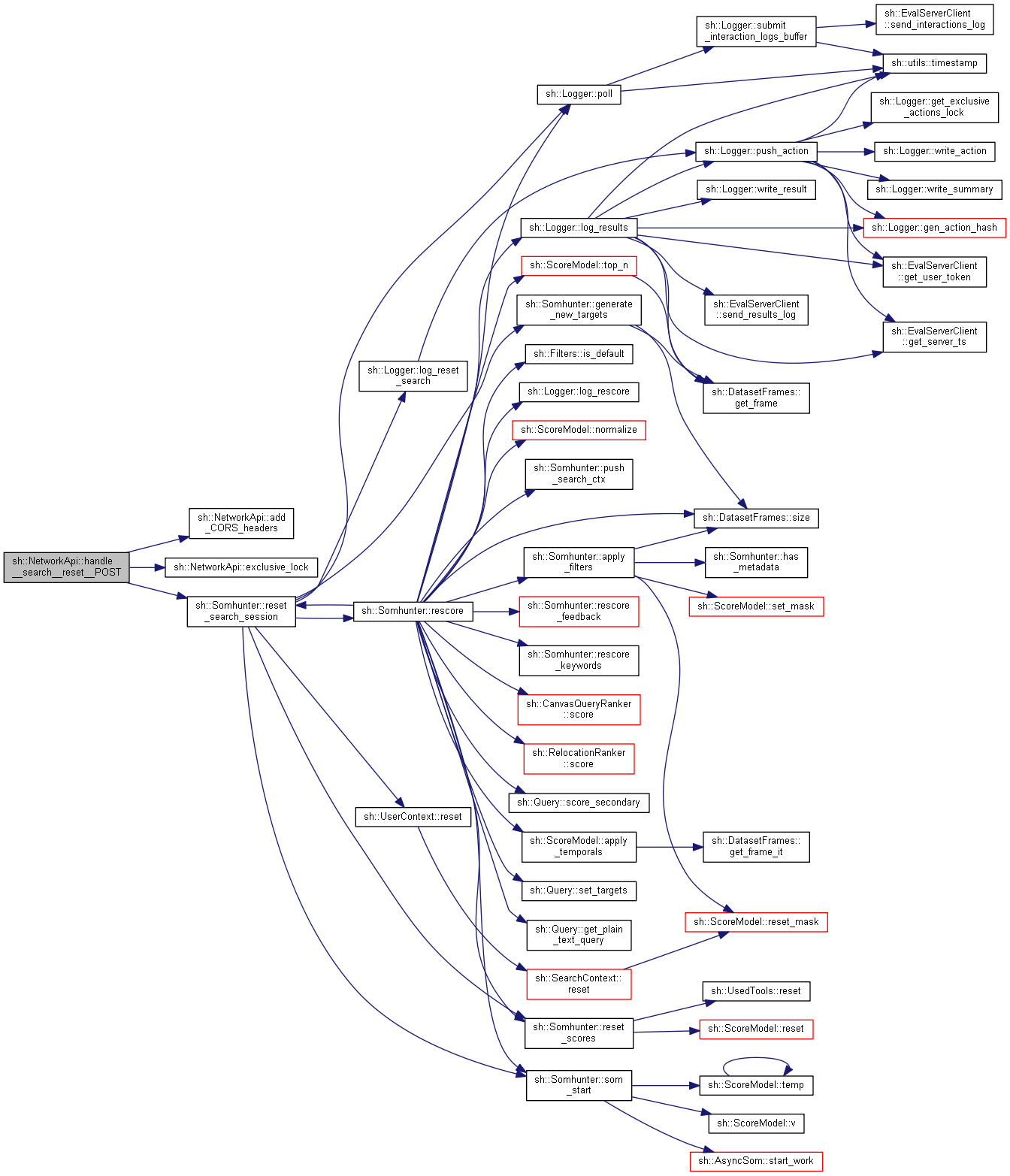

Here is the call graph for this function:

handle__user__context__GET()

void NetworkApi::handle__user__context__GET ( http_request  req )

private

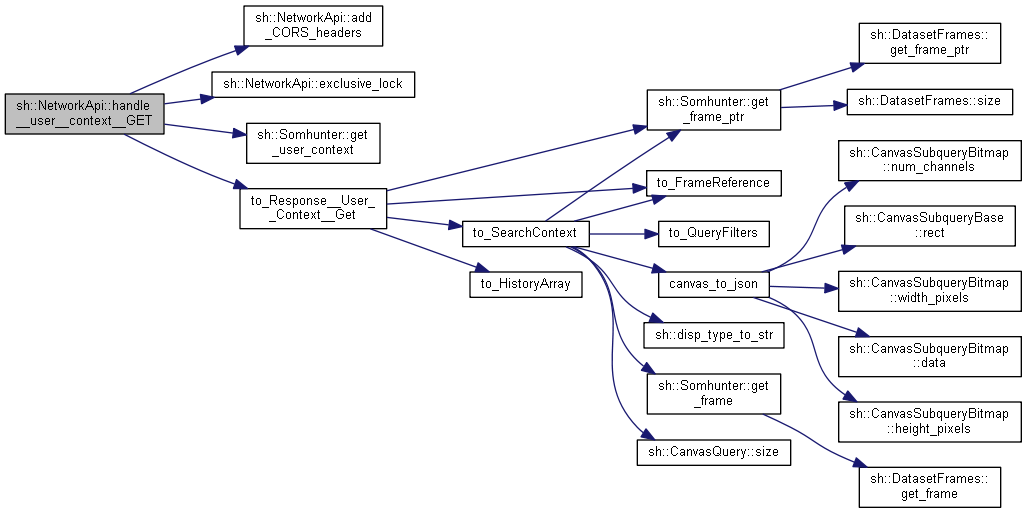

Here is the call graph for this function:

initialize()

void NetworkApi::initialize

(

)

Initializes the HTTP listeners on the required endpoints.

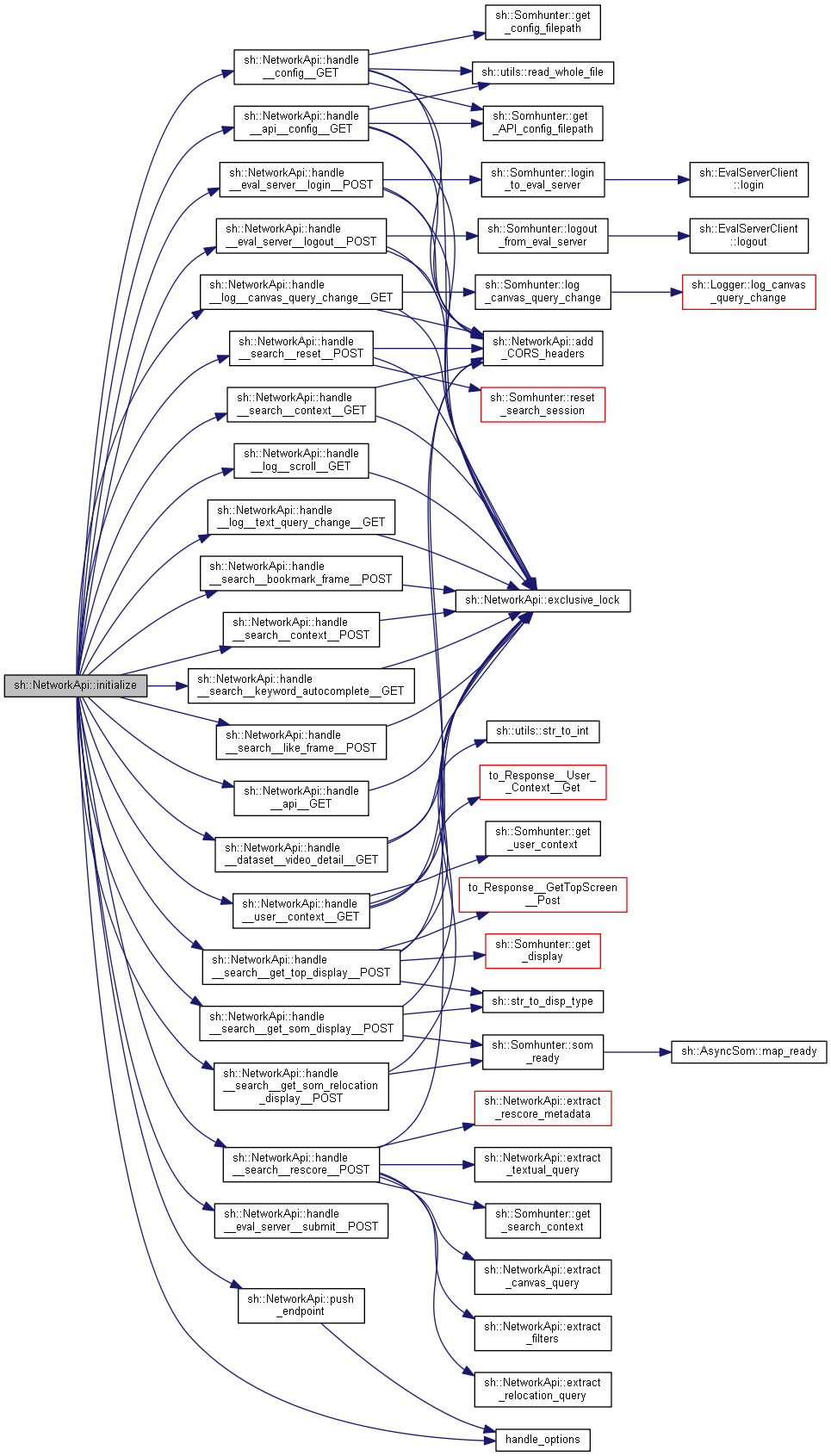

Here is the call graph for this function:

push_endpoint()

void NetworkApi::push_endpoint ( const std::string &  path, std::function< void(NetworkApi *, http_request)>  GET_handler = std::function<void(NetworkApi*, http_request)>{}, std::function< void(NetworkApi *, http_request)>  POST_handler = std::function<void(NetworkApi*, http_request)>{}, std::function< void(NetworkApi *, http_request)>  PUT_handler = std::function<void(NetworkApi*, http_request)>{}, std::function< void(NetworkApi *, http_request)>  DEL_handler = std::function<void(NetworkApi*, http_request)>{}  )

private

Registers the provided handlers for the given path in the HTTP listener.

Parameters

path	String denoting the path of this endpoint (e.g. /api/do-something).
GET_handler	Handler to call in case of GET request.
POST_handler	Handler to call in case of POST request.
PUT_handler	Handler to call in case of PUT request.
DEL_handler	Handler to call in case of DEL request.

Returns

void

Here is the call graph for this function:

run()

void NetworkApi::run

(

)

The "main" function of the HTTP API - calls both initialize & terminate.

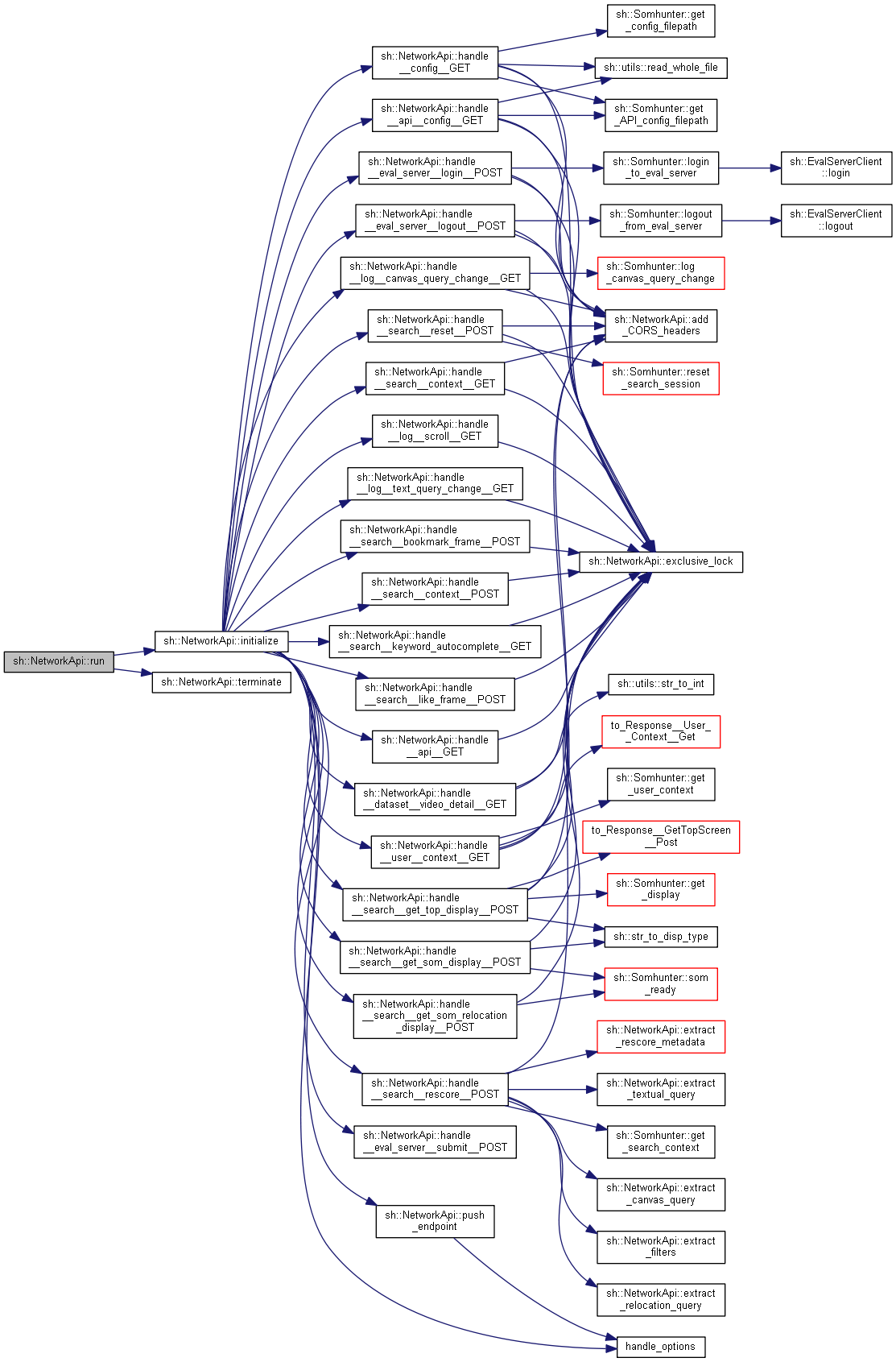

Here is the call graph for this function:

terminate()

void NetworkApi::terminate

(

)

Safely terminates all the endpoint listeners.

Member Data Documentation

_API_config

ApiConfig sh::NetworkApi::_API_config

private

A private copy of config.

_base_addr

std::string sh::NetworkApi::_base_addr

private

Base HTTP API address.

_endpoints

std::vector<http_listener> sh::NetworkApi::_endpoints

private

Vector of used endpoints.

_p_core

Somhunter* sh::NetworkApi::_p_core

private

A pointer to the core that this API exposes.

_req_mtx

std::mutex sh::NetworkApi::_req_mtx

mutableprivate

Lock used to synchronize some requests.

---

The documentation for this class was generated from the following files:

• src/network-api/network-api.h
• src/network-api/network-api.cpp
